An Easy Pattern Paper for Unique Walls

Erik Sine

By Erik Sine
in General Message Board

 Share

Recommended Posts

Erik Sine Master Engineer

Erik Sine

Posted
Posted

Thought I would share some pictures of what makes the Westrim Burroughs Pattern Paper that we stock so good to use especially in unique conditions.



This is a perfect case for using Westrim's Pattern Paper.

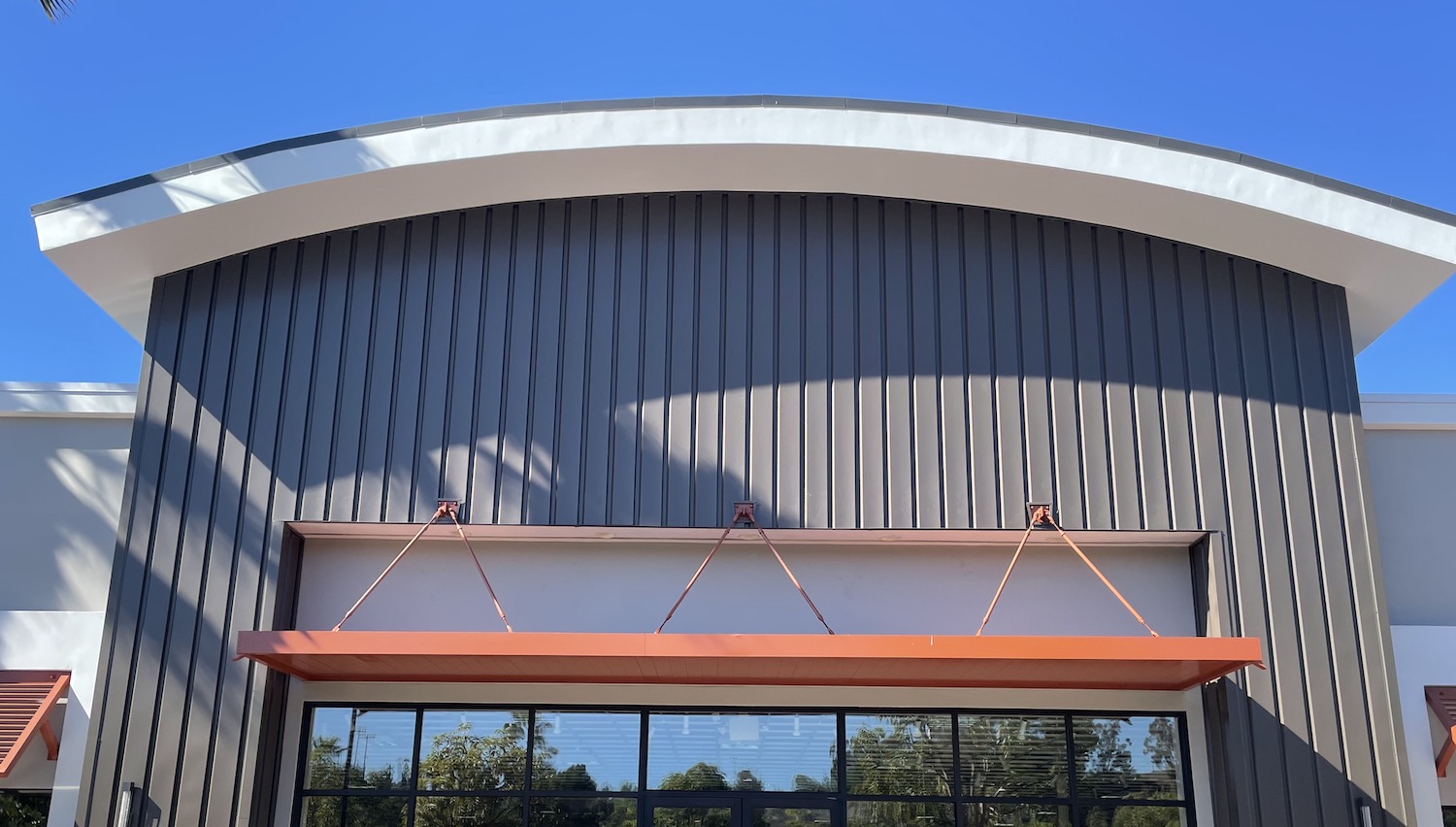

External corrugated paneling.

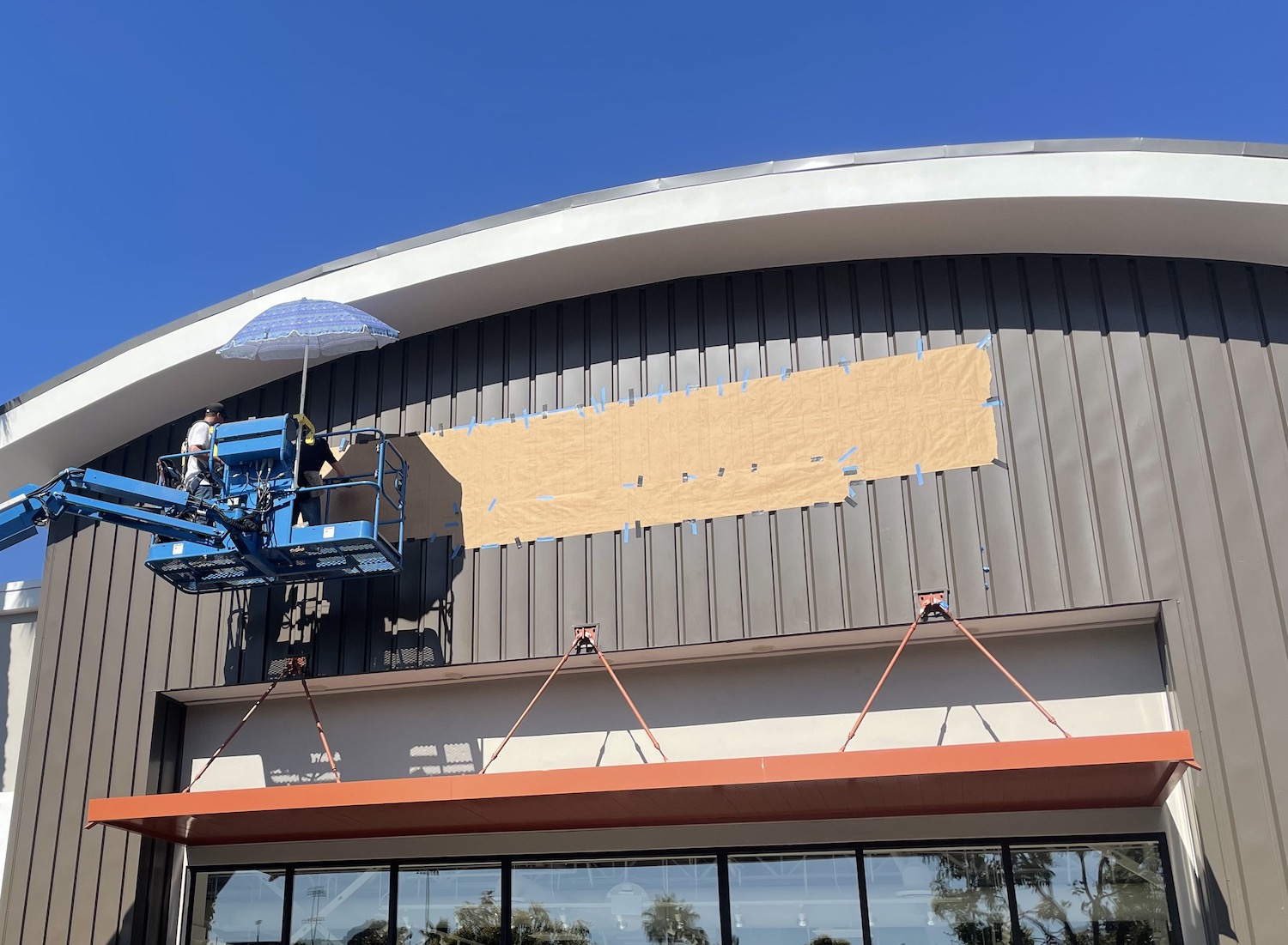

I suppose you could measure a wall out and hope it lines up doing a computer generated pattern that you will plot out and hand to the install crew, or you could use the Westrim Burroughs Pattens paper, cut a small strip out and make a real time field pattern.  Bring back to your shop a accurate pattern of the corrugated paneling capturing every angle, void and clip system of each locking paneling and putting along side the sign pattern with ease marking all those obstacles so you know where your mounting holes and pass thru's will need to be so your install crew has an easy day installing that sign!





Product Pictures Courtesy of West Coast Sign Company, CA

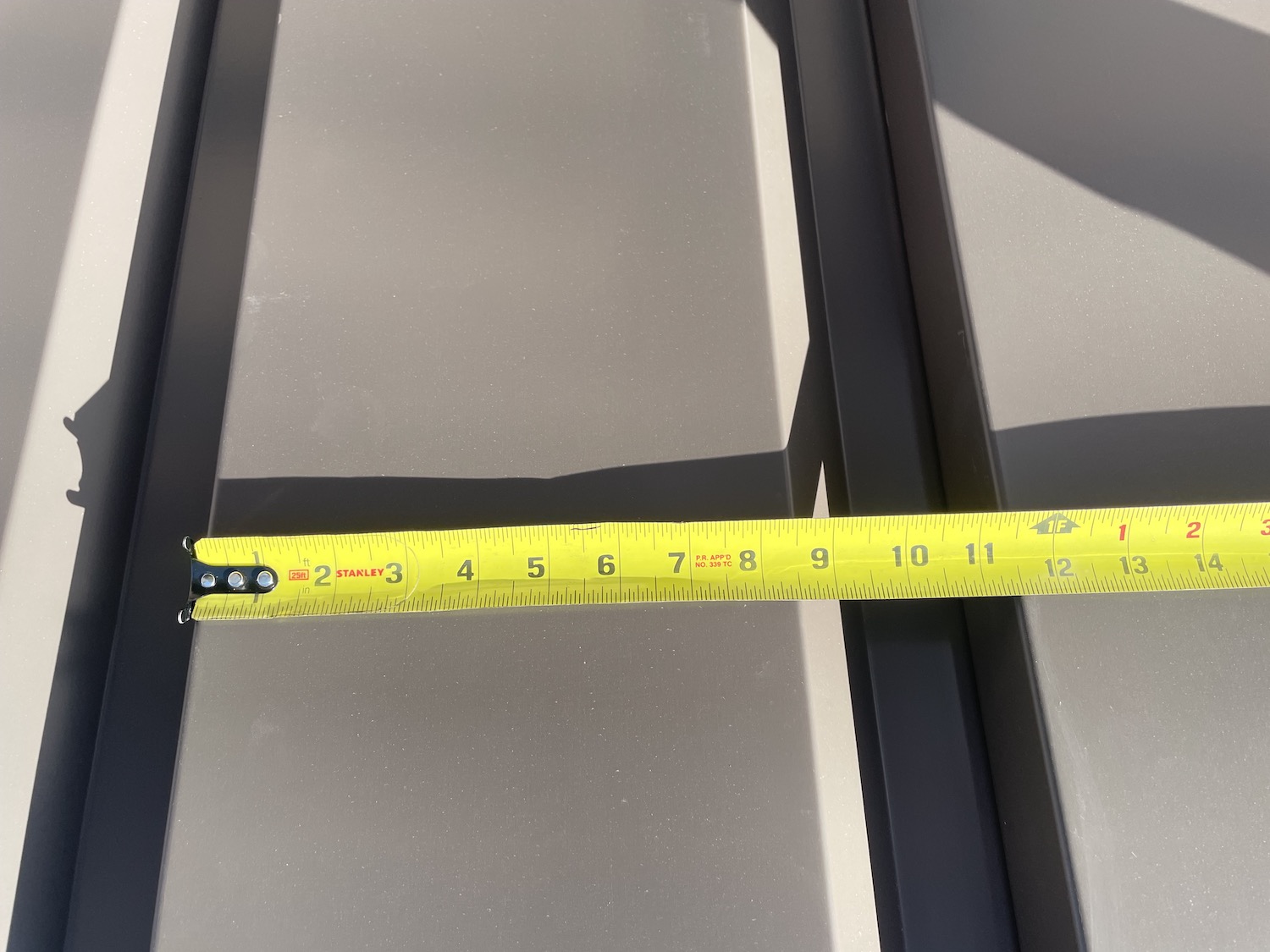

Corrugated paneling consisting of 45˙ & 60˙ angles with locking clips

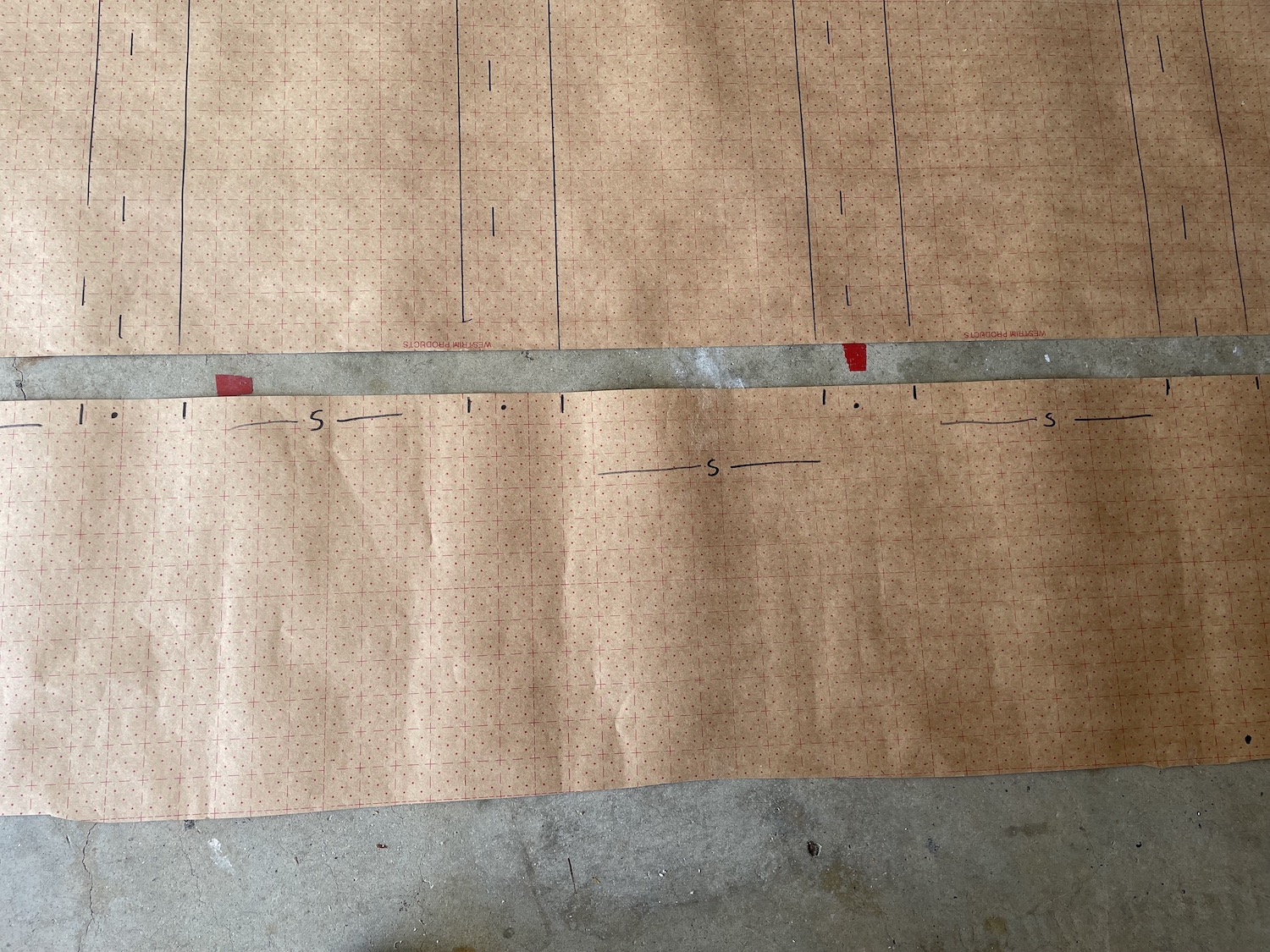

Matching up the field pattern (lower) with the actual Letter Pattern

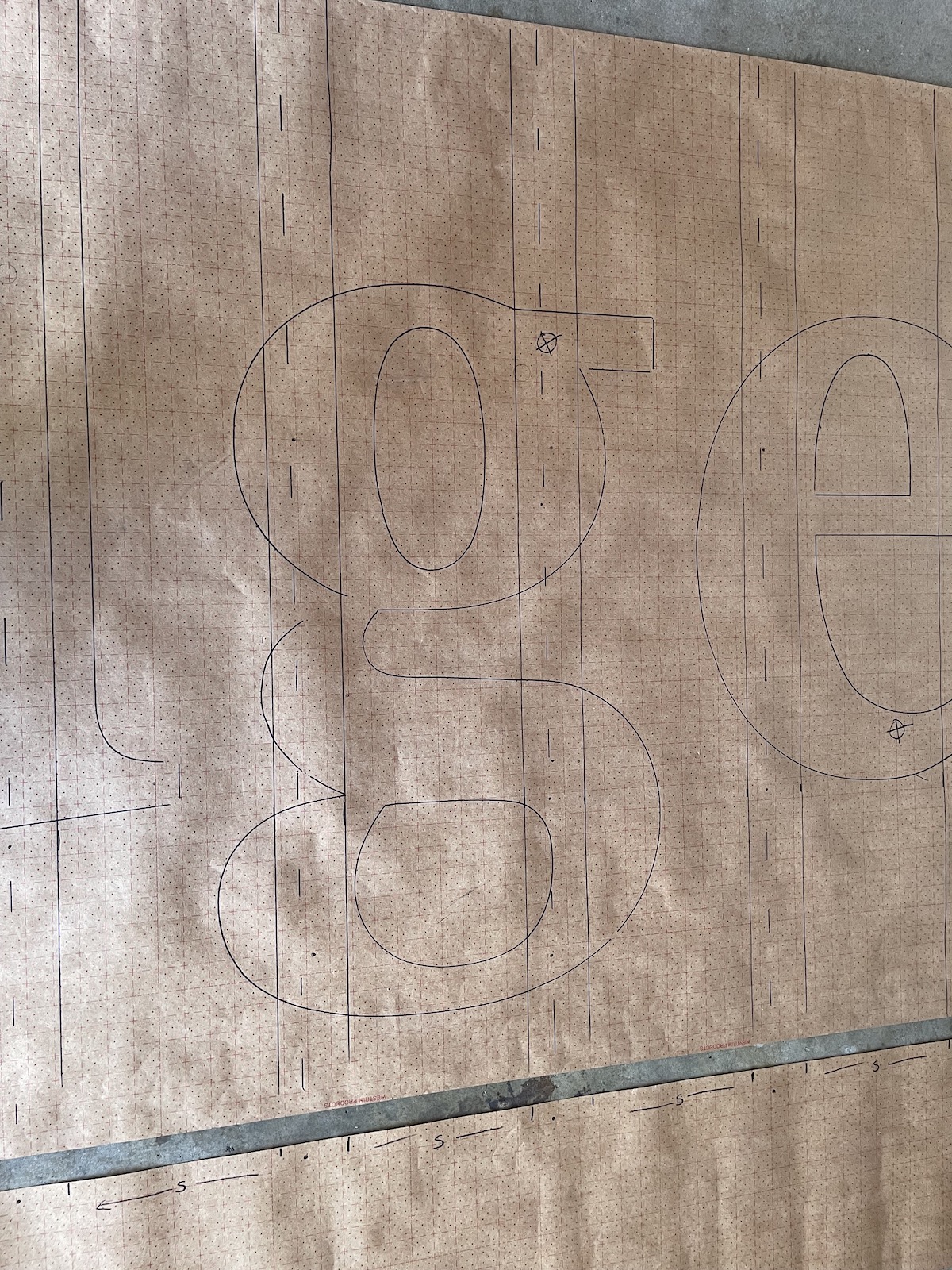

Accurately place all mounting & pass thru holes where they need to be

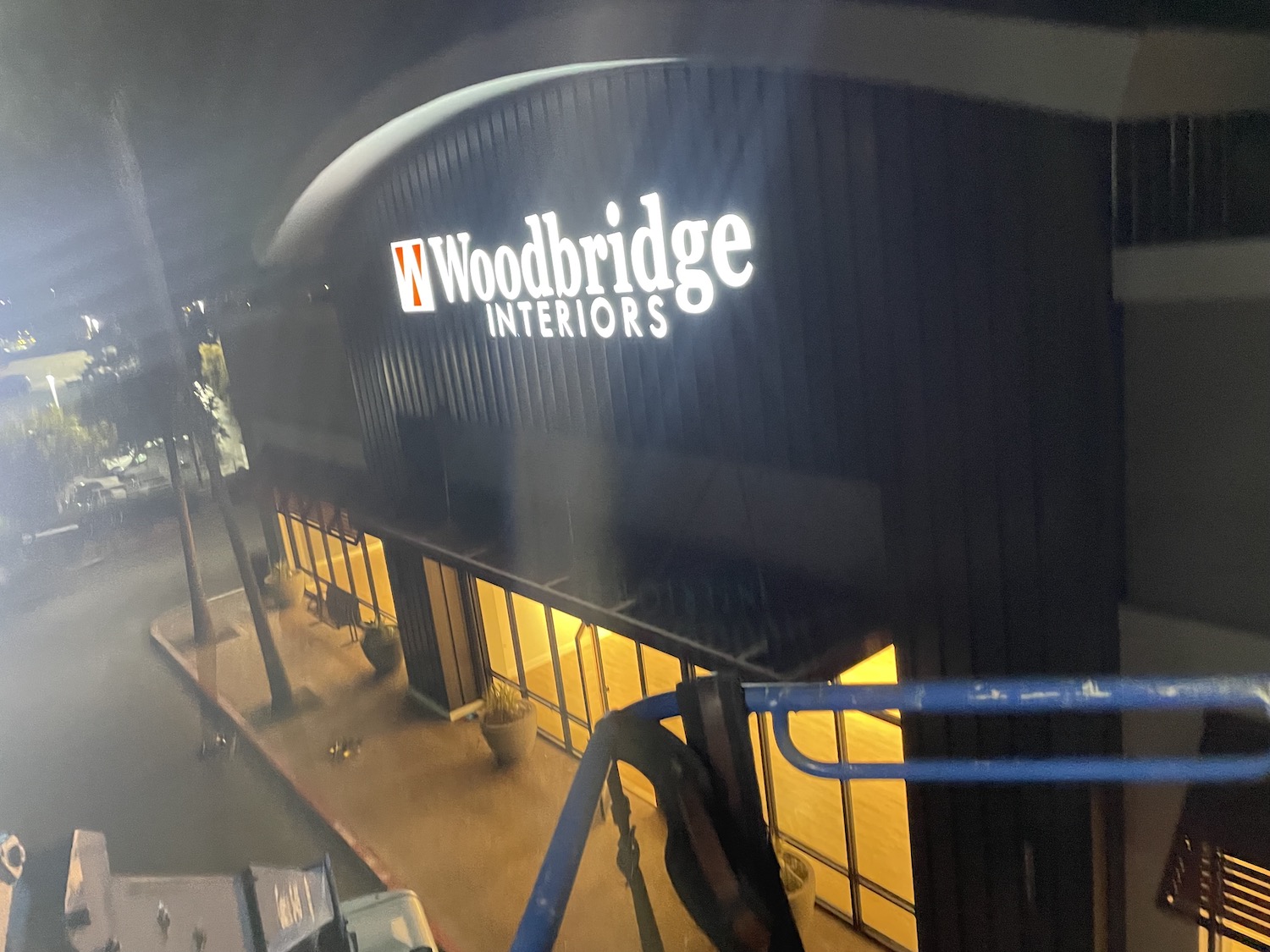

Give your install crew an easy Install Day!





Product Pictures Courtesy of West Coast Sign Company, CA









The Westrim Burroughs Pattern Paper can be purchased through our online Store Here







Or feel free to call in or order your order (858) 880-1400 |  orders@thesignsyndicate.com
