Sign Syndicate Light Testing Results - LED Failure
1 1

1 post in this topic

ANNOUNCEMENT:

The Testing for all our light projects will resume Starting this month next week. The last results were posted on this site last September. We have taken the November 2012 evaluations but never posted them. We have just finished with February's test results and will be posting those next week as well. We will be changing monthly reports to bi-monthly reports. I have started acquiring newer modules from various Board vendors as well as non-vendors to add to our projects.

A new test we will be introducing right before ISA is "Blue Light Special". This will be a small test like The Red Light District with a few select vendors. Blue LEDs are a very hard find. Many manufacturers market they have a blue line but very few actually produce any you can find at a distributor or supplier so we will stick to those who have their products readily available sitting on a shelf.

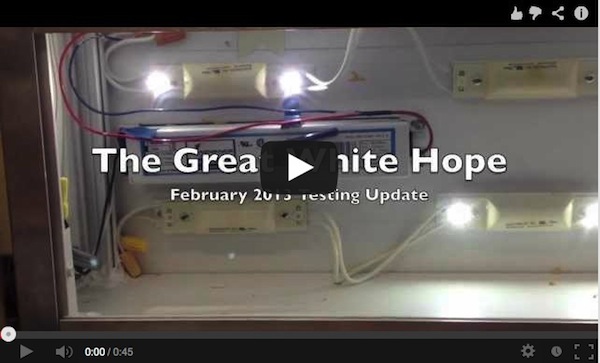

In doing our February test results we came across a failure of a light source mfg product that we have had in The Great White Hope for over 26,000 hours. Below is a video update of The Great White Hope
